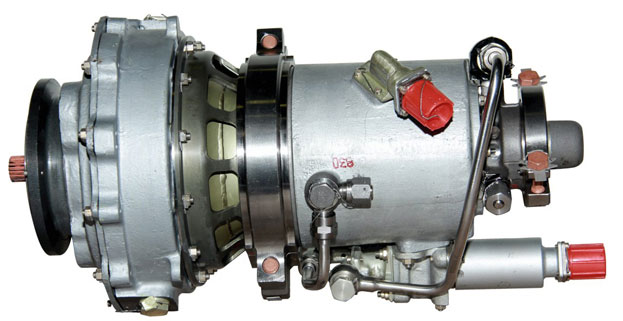

SV-65(B) AIR STARTER
The starter is intended for TV7-117(С,V) turboprop engine cranking (IL-114 aircraft, helicopter Mi-382) at start-up, false start-up and cold cranking.
MAIN TECHNICAL SPECIFICATIONS
| Power, h.p. (at air pressure 0.172-0.175 MPa, turbine rotational frequency 38 600 rpm, inlet air temperature 180oС) | 45+10 |
| Air pressure working range, MPa | 0,15-0,23 |
| Maximum output shaft rotational frequency, rpm | 7200 |
| Inlet air temperature, ОC | От +100 до +200 |
| Reduction ratio | 0,1246 |
| Weight, kg | 10,2 |
| Overall dimensions, LхBxH, mm | 421х220x260 |
Developer: "Klimov Corporation"
